Manual operation

Fan speed control

Turn the to manually fan speed control dial to manually control the fan speed.

Press the AUTO button to return to automatic control of the fan speed.

Air recirculation Press the to recirculate air recirculation button to recirculate interior air inside the vehicle. The indicator light on the button will come on. indicator light on the button will come on.

The air recirculation cannot be activated when the air conditioner is in the front defrosting front defrosting mode or the foot outlet front defrosting and foot outlet mode.

Automatic intake air control

In the AUTO mode, the intake air will be controlled automatically. To manually control the intake air, press the button. air recirculation button.

To return to the automatic control mode, press and hold the button for air recirculation button for about 2 seconds. The indicator light will flash twice, and then the intake air will be controlled automatically.

Air flow control

Pressing the MODE button manually controls air flow and selects the air outlet:

vents.— Air flows from center and side vents.
vents— Air flows from center and side vents and foot outlets.
outlets. — Air flows mainly from foot outlets.
outlets.— Air flows from defroster and foot outlets.
— Air flows from defroster outlets.

Rear automatic air conditioning system

Rear automatic air conditioning system

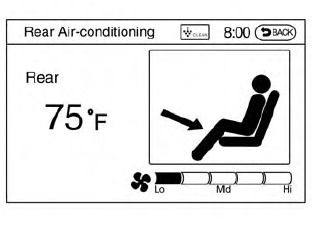

To control the rear automatic air conditioning system with the front air conditioner control panel, press the REAR button. When the rear automatic air conditioning system control is on, the indicator light on the REAR button will illuminate and the front display will switch to the rear air conditioner screen.

The rear automatic air conditioning system can be adjusted with the front air conditioner control panel, when the rear air conditioner screen is displayed.

To adjust the front air conditioning system, press the REAR button one more time.

Automatic operation:

1. Press the AUTObutton. The AUTOindicator light will illuminate and “AUTO” will appear on the display.
2. Turn the temperature control dial (driver’s side) to set the desired temperature.

Manual operation:

● Temperature control
 Press the temperature control buttons to set the desired temperature.

● Fan speed control
 Press the fan speed increase or decrease button to manually control the fan speed.

Press the A/C button when the rear automatic air conditioning system is turned on with the rear air conditioner screen displayed to turn off the rear automatic air conditioning system.

Rear Heating (A/C off):

1. Press the REAR button to display the rear air conditioner screen on the front display when the rear automatic air conditioning system is on.
2. Press the AUTObutton. The AUTOindicator light will illuminate and “AUTO” will appear on the display.
3. If the A/C indicator light illuminates, press the A/C button. The A/C indicator light will turn off.
4. Turn the temperature control dial to set the desired temperature.

● Do not set the temperature lower than the outside air temperature. Doing so may cause the temperature to not be controlled properly.
● To dehumidify the air, press the A/C button before turning on the heater.

Turning the system off :

Press the OFF button when the rear air conditioner screen is displayed.

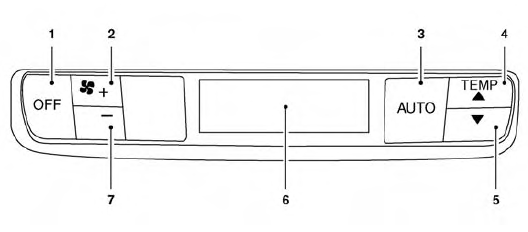

1. OFF button

1. OFF button
2. Fan speed increase (+) button
3. AUTO button
4. Temperature increase (button ) button
5. Temperature decrease (6. Display) button
6. Display
7. Fan speed decrease (-) button

Rear control buttons:

The rear seat passengers can adjust the rear automatic air conditioning system using the control switches at the rear of the center console.

The rear control buttons do not function when the rear air conditioner screen is shown on the front display. To activate the rear control buttons, press the REAR button on the front air conditioner control panel and switch the screen on the front display.

OFF button: Turns rear automatic air conditioning system off.

Fan speed increase and decrease buttons: Adjusts the rear fan speed up or down.

AUTO button: Turns rear automatic air conditioning system on, AUTO mode on.

Temperature increase and decrease buttons: Adjusts the rear temperature up or down

To turn system off
Press the OFF button.
