Programming HomeLink®
If you have any questions or are having difficulty programming your HomeLink® buttons, refer to the HomeLink web site at: www.homelink.com or call 1-800-355-3515.

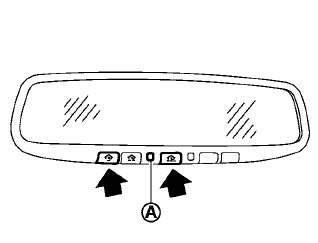

1. To begin, press and hold the two outer
HomeLink® buttons (to clear the memory)
until the indicator light A blinks slowly (after
20 seconds). Release both buttons.
2. Position the end of the hand-held transmitter
1 - 3 inches (26 - 76 mm) away from the
HomeLink® surface.

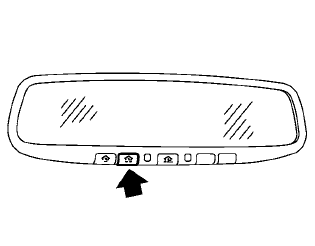

3. Using both hands, simultaneously press and
hold both the HomeLink® button you want
to program and the hand-held transmitter
button.
DO NOT release the buttons until step 4 has been completed.
4. Hold down both buttons until the indicator light on the HomeLink® flashes, changing from a “slow blink” to a “rapidly flashing blink”. This could take up to 90 seconds.
When the indicator light flashes rapidly, both buttons may be released. The rapidly flashing light indicates successful programming.
To activate the garage door or other programmed device, press and hold the
programmed
HomeLink® button — releasing
when the device begins to activate.
5. If the indicator light on the HomeLink®
blinks rapidly for 2 seconds and then turns
solid, HomeLink® has picked up a “rolling
code” garage door opener signal. You will
need to proceed with the next steps to train
the HomeLink® to complete the programming
which may require a ladder and another
person for convenience.
6. Press and release the “smart” or “learn” program
button located on the garage door
opener’s motor to activate the “training
mode”. This button is usually located near
the antenna wire that hangs down from the
motor. If the wire originates from under a
light lens, you will need to remove the lens to
access the program button.
NOTE:
Once you have pressed and released the program button on the garage door opener’s motor and the “training light” is lit, you have 30 seconds in which to perform step 7.
Use the help of a second person for convenience to assist when performing this step.
7. Within 30 seconds of pressing and releasing the garage door opener program button, quickly and firmly press and release the HomeLink® button you’ve just programmed.
Press and release the HomeLink® button up
to 3 times to complete the training.
8. Your HomeLink® button should now be programmed.
(To program the remaining
HomeLink® buttons for additional door or
gate openers, follow steps 2-8 only.)
9. If you have any questions or are having difficulty
programming your HomeLink® buttons,
refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515
NOTE:
Do not repeat step 1 unless you want to “clear” all previously programmed HomeLink® buttons.
