Installing top tether strap (3rd row bench seat)

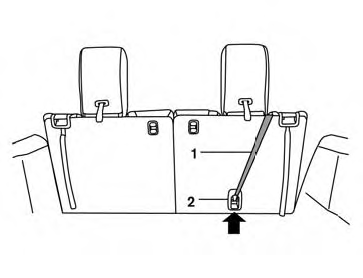

1. Top tether strap

1. Top tether strap
2. Anchor point

WARNING

In the 3rd row bench seat, a child restraint with a top tether strap can only be used on the passenger side seating position. Do not place in the driver’s side seating position and attempt to angle the tether strap to the passenger side seating position.

The passenger side of the 3rd row bench seat is the seating position that can use a top tether strap.

First, secure the child restraint with the seat belt, as applicable.

1. Position the top tether strap 1 to the outboard side of the head restraint as shown.
2. Secure the tether strap to the tether anchor point 2 on the bottom of the seatback behind the child restraint.
3. Tighten the tether strap according to the manufacturer’s instructions to remove any slack. Make sure the head restraint does not contact the top tether strap.

If you have any questions when installing a top tether strap, consult your NISSAN dealer for details.
