Connecting iPod®

Open the console lid and connect the iPod® cable to the USB connector. If compatible, the battery of the iPod® is charged while the connection to the vehicle.

Depending on the version of the iPod®, the display on the iPod® shows a NISSAN or Accessory Attached screen when the connection is completed. When the iPod® is connected to the vehicle, the iPod® music library can only be operated by the vehicle audio controls.

* iPod® is a trademark of Apple Inc., registered in the U.S. and other countries.

CAUTION

• Depending on size and shape of iPod® and iPod® cable, the console lid may not fully close. Do not force console lid closed as this may damage iPod® and iPod® cable.
• Do not force the iPod® cable into the USB port. Inserting the iPod® cable tilted or up-side-down into the port may damage the iPod® cable and the port. Make sure that the iPod® cable is connected correctly into the USB port. (Some iPod® cable come with a mark as a guide. Make sure that the mark is facing the correct direction before inserting the iPod® cable.)
• Do not locate objects near the iPod® cable to prevent the objects from leaning on the iPod® cable and the port. Pressure from the objects may damage the iPod® cable and the port.

Compatibility

The following models are available:

Models with navigation system:

• Fifth generation iPod® (firmware 1.2.3 or later)
• iPod classic® (firmware 1.1.1 or later)
• First generation iPod touch® (firmware 2.0.0 or later)
• Second generation iPod touch® (firmware 1.2.3 or later)
• First generation iPod nano® (firmware 1.3.1 or later)
• Second generation iPod nano® (firmware 1.1.3 or later)
• Third generation iPod nano® (firmware 1.1 or later)
• Fourth generation iPod nano® (firmware 1.0.2 or later)

Models without navigation system:

• Fifth generation iPod® (firmware version 1.3)
• First generation iPod classic® (firmware version 1.1.2 PC)
• Second generation iPod classic® (firmware version 2.0 PC)
• First generation iPod touch® (firmware version 2.1)
• Second generation iPod touch® (firmware version 2.1.1)
• First generation iPod nano® (firmware version 1.3.1)
• Second generation iPod nano® (firmware version 1.1.3)
• Third generation iPod nano® (firmware version 1.1 PC)
• Third generation iPhone® (firmware version 2.1)

Make sure that the iPod® firmware is updated.

Audio main operation

Push the ignition switch to the ACC or ON position. Then, push the DISC·AUX button repeatedly to switch to the iPod® mode.

If the system has been turned off while the iPod® was playing, pushing the ON·OFF button will start the iPod®.

or play:

When the DISC·AUX or AUX button is pushed with the system off and the iPod® connected, the system will turn on. If another audio source is playing and the iPod® is connected, push the DISC·AUX or AUX button repeatedly until the center display changes to the iPod® mode.

Interface:

The interface for iPod® operation shown on the vehicle center display is similar to the iPod® interface. Use the multi-function controller and the ENTER or BACK button to play the iPod® with your favorite settings.

The following items can be chosen from the menu list screen. For further information about each item, see the iPod® Owner’s Manual.

• Now Playing
• Playlists
•  Artists
•  Albums
•  Songs
• Podcasts
•  Genres
• Composers
• Audiobooks
•  Shuffle Songs

The following touch-panel buttons shown on the screen are also available:

• : returns to the previous screen.
• : plays/pauses the music selected.

Next/Previous Track and Fast Forward/Rewind:

Push the FF or REW button for more than 1.5 seconds while the iPod® is playing to fast forward or rewind through a track. When the button is released, the iPod® will return to the normal play speed.

When the FF button is pushed for less than 1.5 seconds while the iPod® is being played, the next track will be played.

When the REW button is pushed for less than 1.5 seconds within 3 seconds after the current track started playing, the previous track will be played.

When the REW button is pushed for less than 1.5 seconds after 3 seconds from when the current track started playing, the beginning of the current track will be played.

The multi-function controller can also be used to select tracks when the iPod® is playing.

REPEAT (RPT), RANDOM (RDM):

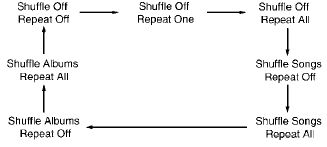

When the RPT button is pushed while a track is being played, the play pattern can be changed as follows:
