Meters and gauges

Meters and gauges

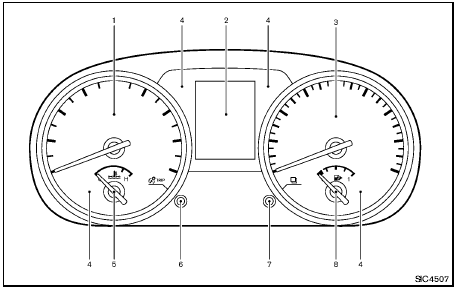

Meters and gauges

1. Tachometer
2. Vehicle information display
3. Speedometer
4. Warning/indicator lights
5. Engine coolant temperature gauge
6. and brightness control) switch (twin trip odometer control and brightness control)
7. computer control) switch (settings control and trip computer control)
8. Fuel gauge

*: if so equipped
