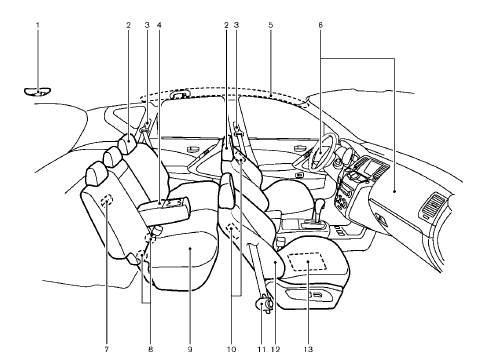

Hardtop models
1. Rear center seat belt
2. Head restraints
— Front-seat Active Head Restraints
3. Seat belts
4. Armrest
5. Roof-mounted curtain side-impact and rollover
supplemental air bags
6. Supplemental front-impact air bags
7. Child restraint anchor points (for top tether strap
child restraint)
8. LATCH (Lower Anchors and Tethers for CHildren)
system
9. Rear seats
— Child restraints
10. Front seat-mounted side-impact supplemental
air bags
11. Seat belt pretensioner
12. Front seats
13. Occupant classification sensor (pattern sensor)
— Advanced Air Bag System
